the pedalboard media hub for musicians™
Connect your device. Control your stage.

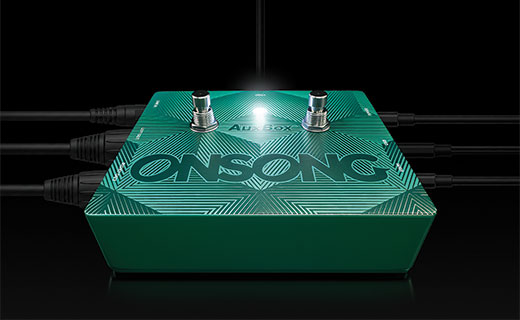

AuxBox connects your iPad, iPhone, Mac or other devices to the gear you use during live performances. It gives you the power to drive video displays, sound systems, MIDI instruments, and your pedalboard effects with a single wire while controlling everything hands-free through the OnSong® app.
Everything it does.
USB-C Power Delivery
Fast charge your connected device at up to 60 watts.
4K HDMI Output
Crystal-clear video for lyrics projection or stage monitors.
Stereo XLR Outputs
Built-in digital DI brings clean, analog sound to your system.
Stage-Grade Stompbox
Hands-free control of your music software like the OnSong® app.
1/4” Instrument Input
Connect your instrument directly for tuning, recording, and effects.
Designed For Mobility
Just connect and perform. No external power required.
Gig-Proof Enclosure
Powder-coated metal enclosure. Proudly built in the USA.
MIDI + USB Expansion
Connect to MIDI devices with the included adapter and more.
Clean up your rig with one wire.
Charts, click, backing tracks, lyrics on the screen behind you, MIDI to the keys, lights on the truss — every one of those wants its own cable, and your device has one port. This is what goes between.
So many ways to use it.
Worship service with backing tracks
- iPad running OnSong with multitracks loaded
- Left Out to FOH, Right Out to in-ear click and cues
- HDMI to a confidence monitor or lyrics projector
- Stomp switches advance song parts
Solo acoustic gig
- iPhone or iPad running OnSong
- Acoustic preamp into the 1/4” Line In
- Left and Right Out to your powered speakers
- Stomp to the next song or start a backing track
Band rehearsal with stage monitor
- MacBook running OnSong
- HDMI to a 4K monitor — one shared chart for the room
- Keyboard controller in over USB-A and the MIDI connector
- Stomps jump between songs in the set
DMX stage lighting
- USB-A to a USB-to-Ethernet adapter, into an ArtNet node
- Configure fixture colors and programs with OnSong Scenes
- Assign scenes to songs and sections
- Navigate songs from the pedal — the lights follow
One box instead of nine.
Everything the OnSong® AuxBox does, you could already do but with
a bag full of adapters, messy cables, a power strip, and hours of programming.
| Guitar effects processor and amp modeler | $499 – $799 |
|---|---|
| Drum machine | $399 – $499 |
| USB digital DI | $120 – $290 |
| Guitar audio interface | $80 – $200 |
| Foot switch | $100 |
| HDMI video adapter | $70 |
| USB-C hub | $50 |
| MIDI interface | $20 – $30 |
| Power strip | $25 – $50 |
| What that costs | $1,363 – $2,088 |
| OnSong® AuxBox | $499 |
It’s portable, more capable,
and a fraction of the price!
Typical street prices for comparable gear. The AuxBox is the interface
— effects, amp modeling and drum playback run in OnSong on the device you already own.
In the box.
- OnSong® AuxBoxwith non-slip feet
- Two 6.5′ USB-C cordsfull-featured — video, power and data at once
- USB-A to MIDI connectordual 5-pin DIN
- Owner’s manualand 2-year OnSong® Premium gift card
By the numbers.
| Dimensions | 5.5 × 4.5 × 1.75 in (140 × 114 × 44 mm) |
|---|---|
| Weight | Approx. 1.4 lb (640 g) |
| Enclosure | Powder-coated metal, teal finish |
| Audio | 48 kHz / 24-bit, ≥ 110 dB dynamic range |
| XLR out | +4 dBu balanced, 150 Ω, ground lift |
| Line in | 1/4” TS, 1 MΩ instrument or line level |
| HDMI | HDMI 2.0, 4K @ 60 Hz |
| USB-C Host | USB 3.x — audio, MIDI, video and Power Delivery passthrough |
| Power Delivery | Fast charge the connected device at up to 60 W |
| USB-A | USB 2.0 high-speed expansion |
| Storage | Internal microSD slot (card optional) |
| Origin | Pedal made in the USA · cables made in China |
| SKU | AUXBOX-01 |
Specifications are provisional and may be revised before final production.
Put it on your board.
Ships to United States addresses only.
